Ergonomic, Compact and safe long tiller design.
Reliable and strong Chassis.
Powerful, Maintenance Free core components.
Safty LFP Lithium-battery.
 |

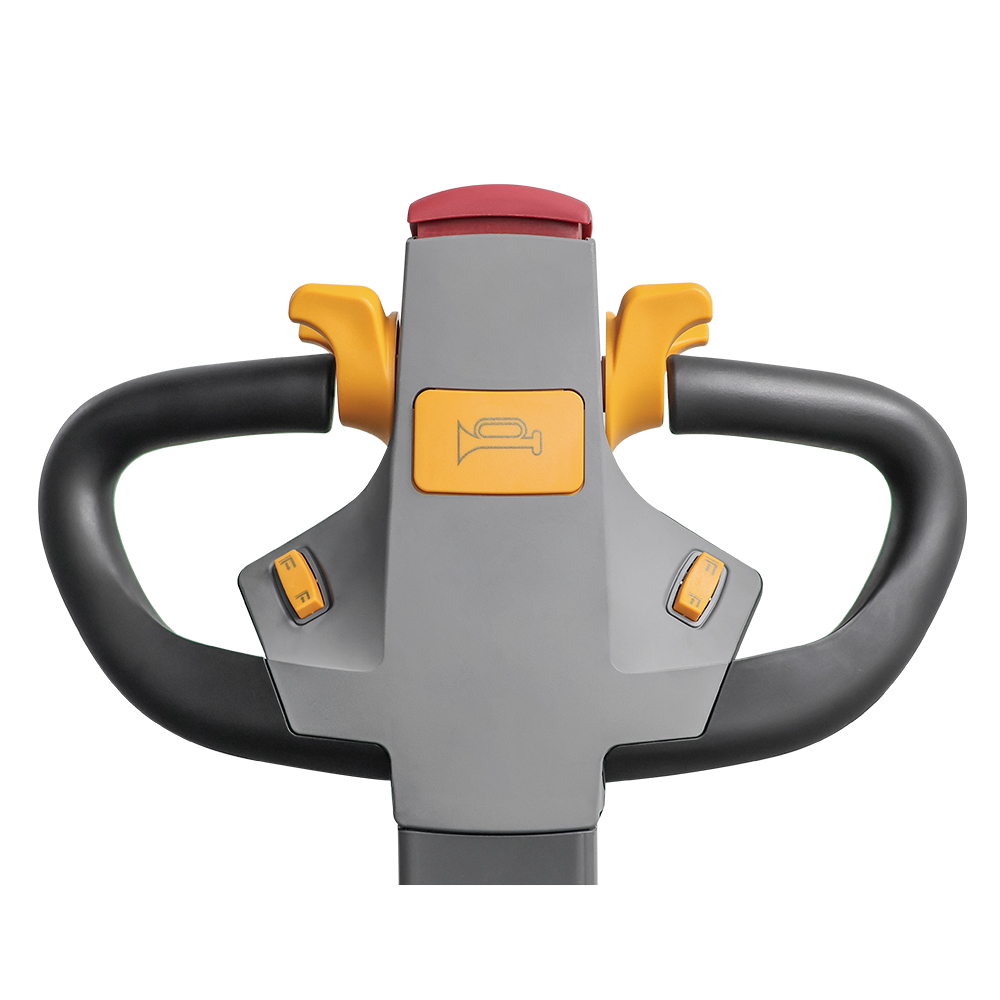

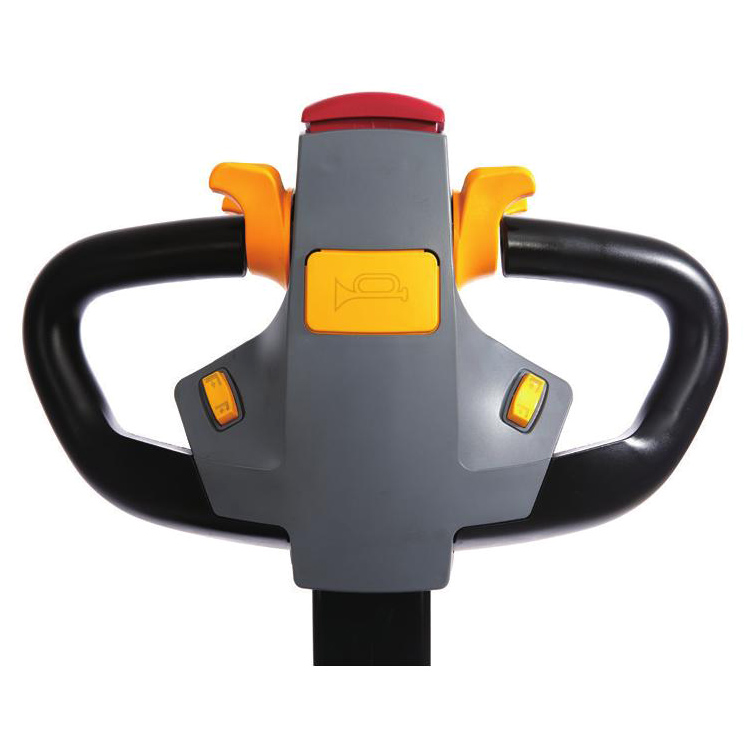

Long tiller design. Ergonomically designed long tiller allows comfortable and efficient operator by keeping a safe distance. |
 |

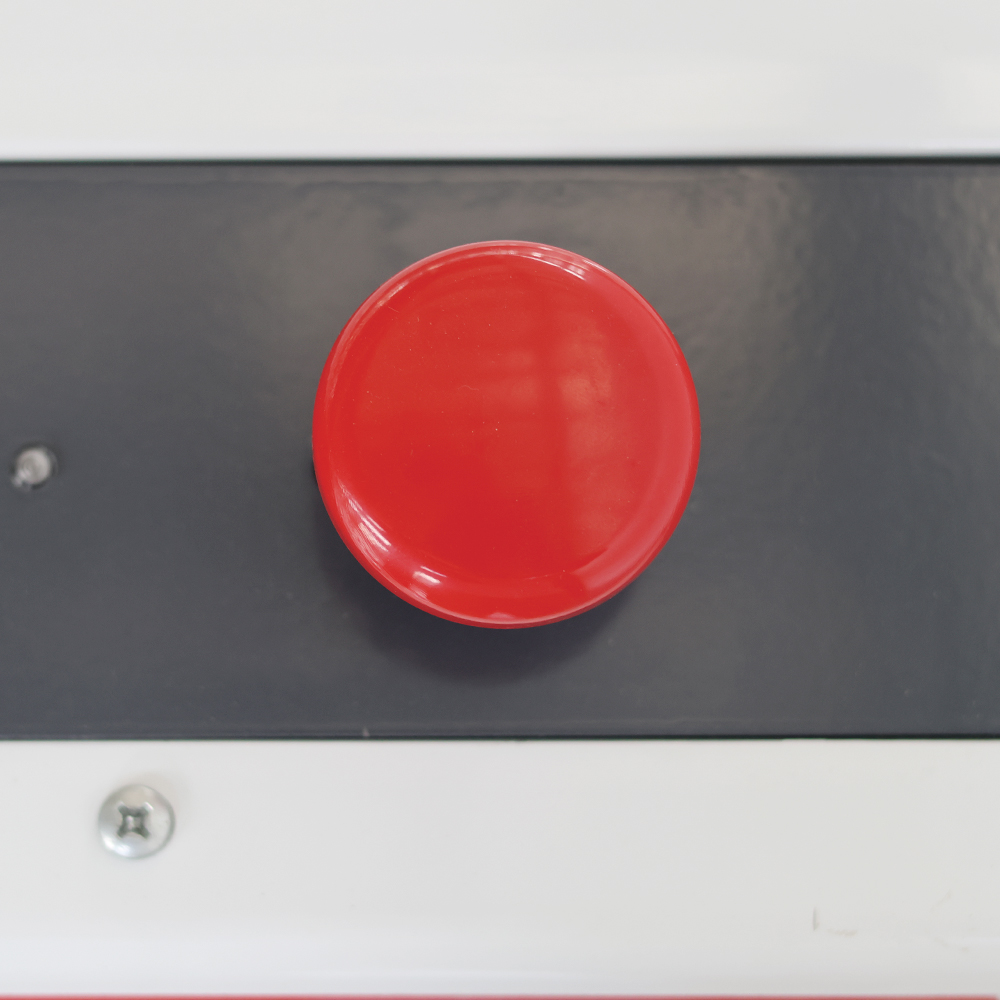

Emergency button. Emergency switcch located where you can easily reach and control, assuring safety for people and truck. |

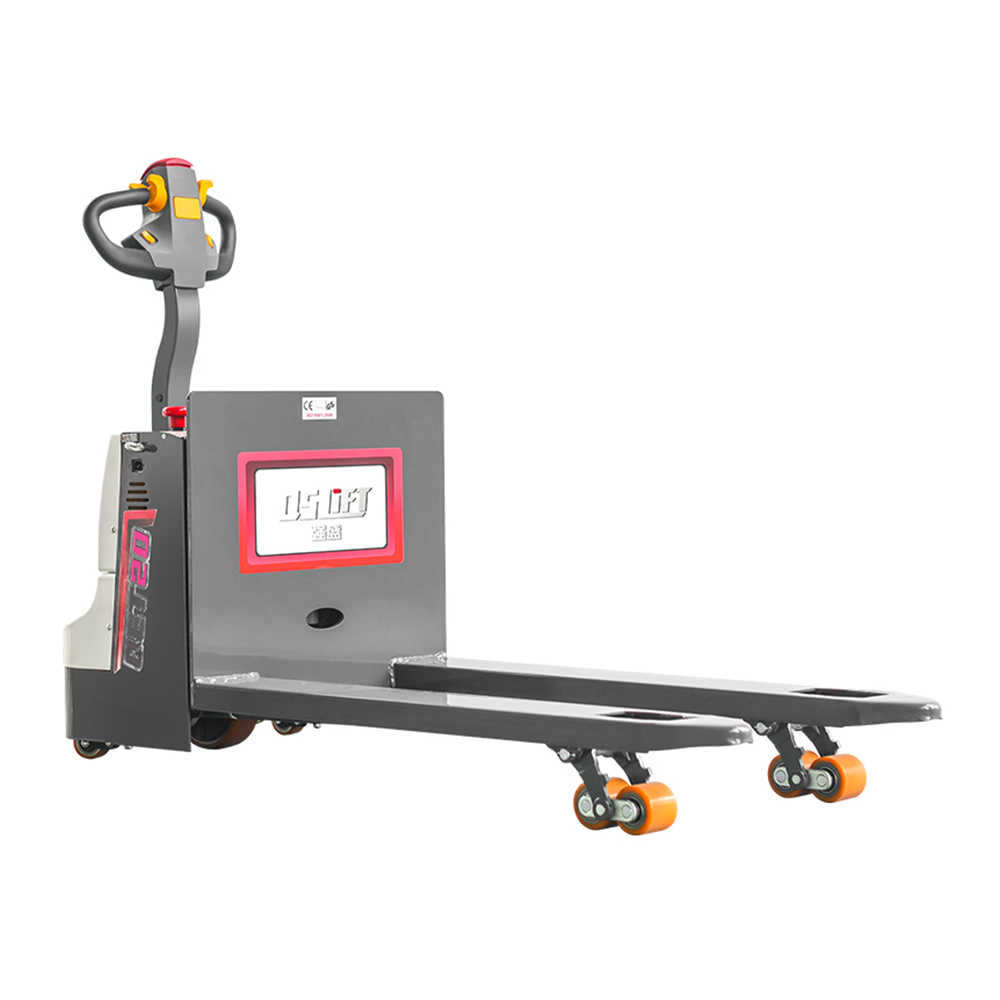

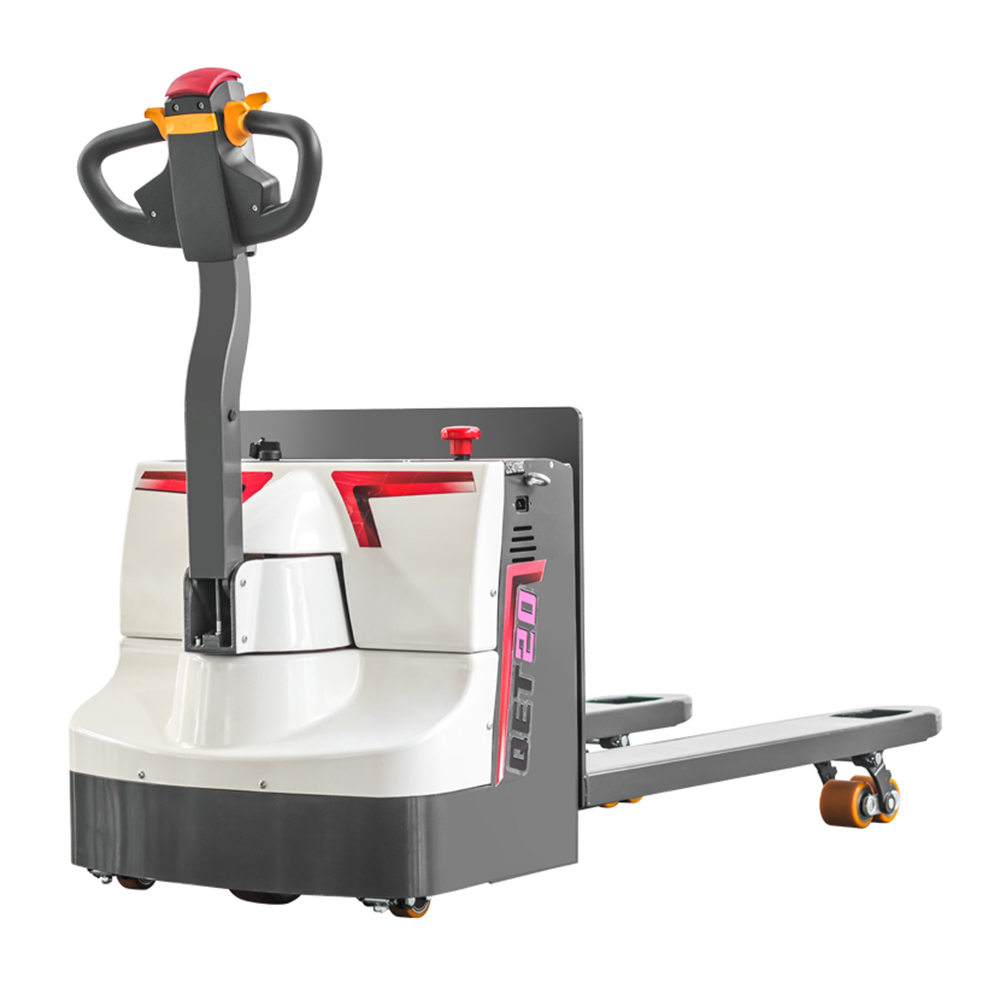

Electric Pedestrian Power pallet truck 1kg=2.2lb 1inch=25.4mm
|
Type |
QET20 | ||||
|
Feature |
1.1 |
Q |
Capacity |
kg |
2000 |
|
1.2 |
C |
Load Centre |
mm |
600 |
|
|
1.3 |
|
Operate type |
|
Pedestrian |
|
|
1.4 |
|
With EPS or Not |
|
No. |
|
|
Dimensions |
2.1 |
H1 |
Lifting height |
mm |
85-190 |
|
2.12 |
H |
Max fork height |
mm |
190 |
|
|
2.13 |
H2 |
Min. fork height |
mm |
85 |
|
|
2.14 |
H5 |
The height range of handle when driving |
mm |
1150 |
|
|
2.15 |
H4 |
The height of truck body |
mm |
695 |
|
|
2.2 |
B1 |
The width of the fork |
mm |
560/ 680 |
|
|
2.3 |
L |
The lengh of the fork |
mm |
1150 |
|
|
2.4 |
S |
The thinkness of the fork |
mm |
54 |
|
|
2.5 |
E |
The width of single fork |
mm |
160 |
|
|
2.6 |
L1 |
The length of truck |
mm |
1620/1630 |
|
|
2.7 |
L2 |
Length of the truck body |
mm |
1458 |
|
|
2.8 |
B |
Width of the truck |
mm |
680 |
|
|
2.9 |
Wa |
Turning Radius(Exc.handle) |
mm |
1430/1440 |
|
|
2.91 |
Ast |
Min. Right-angle stack channel width, (pallet size 800×1200,1200 placed along cargo fork） |
mm |
2315 |
|
|
2.92 |
Ast |
Min. Right-angle stack channel width, (pallet size 1000×1200,1200 placed abng cargo fork) |
mm |
2415 |
|
|
Performance |
3.1 |
|
Max Driving speed with/without loading |
km/h |
2.5/3 |
|
3.2 |
|
Max Lifting speed with/without loading |
m/s |
0.035/0.045 |
|
|
3.3 |
|
Max. towering speed with/without ba ding |
m/s |
0.05/0.04 |
|
|
3.4 |
|
Gradeability (go through % ramp/obstacle) with/without loading |
% |
5/7 |
|
|
Weight |
4.1 |
|
N.W, (Exc.battery) |
kg |
285 |
|
4.2 |
|
N.W. (Inc.battery) |
kg |
335 |
|
| Wheel |
5.1 |
|
Wheel material (Steering / load roller) |
|
PU |
|
5.2 |
|
Number of drive wheel and load roller |
pcs |
3 |
|
|
5.2 |
|
Size of drive wheel |
mm |
210*70 |
|
|
5.4 |
D2 |

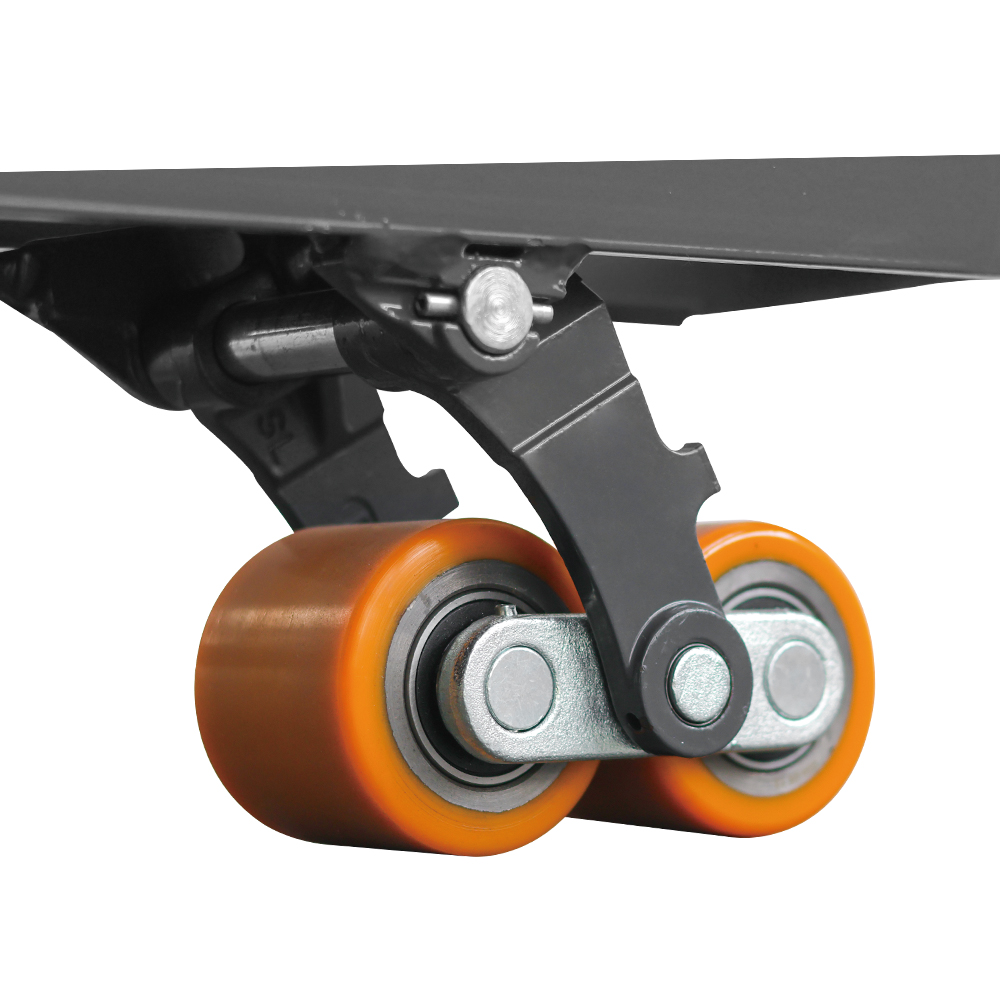

Size of load roller |
mm |
80/70 |
|
|
5.5 |
|
Size of balance wheel |
mm |
70*36 |
|
|
5.6 |
Y |
Wheelbase |
mm |
1265 |
|
|
Driving system |
6.1 |
|
Power of Drive Motor |
kw |
0.75 |
|
6.2 |
|
Power of Lifting Motor |
kw |
0.8 |
|
|
6.3 |
|
Voltage of battery |
V |
48 |
|
|
6.4 |
|
Capacity of battery |
Ah |
30 |
|
|
6.5 |
|
Size of batterry (L× L×H) |
mm |
120*220*340 (Lithium battery) |
|
|
6.6 |
|
Brake |
|
Electromagnetic Brake |
|
|
6.7 |
|
Controller |
|
PVM48S05 |
|
