Standard Hand Pallet Truck

Standard Hand Pallet Truck

QD20 / QF25 / QF30
Get a Quote
hand-pallet-truck
dm6a9705
dm6a9704
  • Description

  • Top class range of pallet truck with excellent designs,Reliable, Sturdy, torsion-resistant.

    Professional and ideal storage aid for all variety of manual transport tasks over short distances in stores and whare hours as well as factory plants.

    All pivots points are greased ensures excellent maneuverability with effortless steering The chromed bearing bushes and joints ensure quiet running properties and particularly long service life.

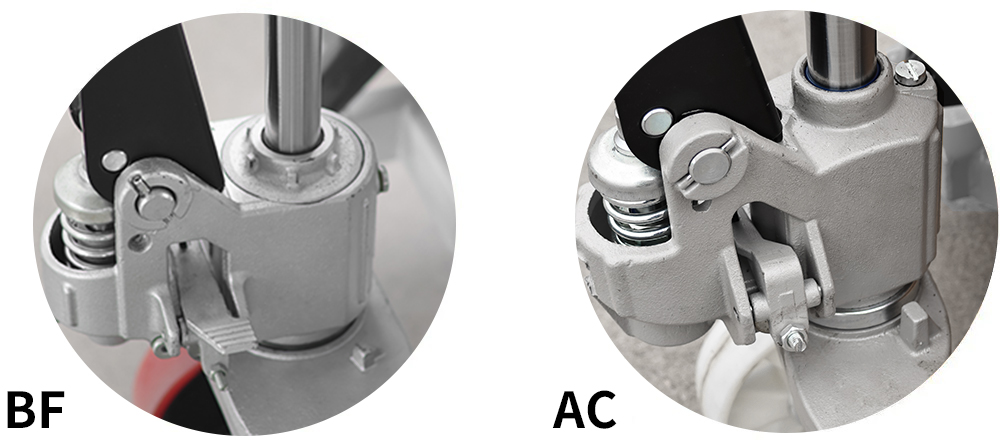

    Excellent whole casting hydraulic pump，robust and durable，with fine control of lowering speed and overload valve，low routine maintenance

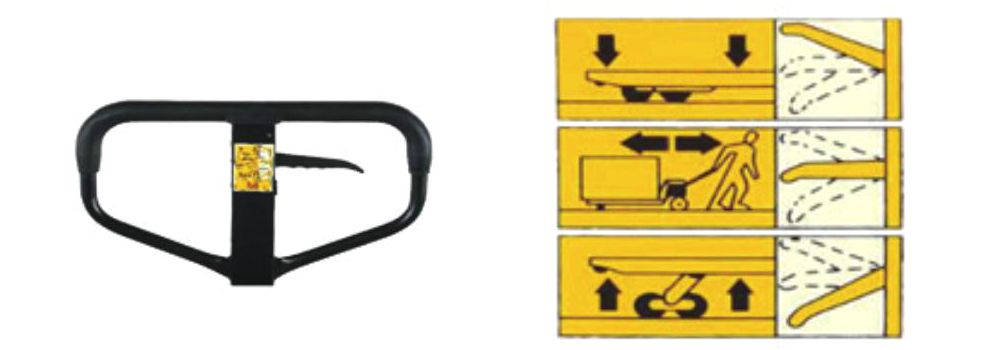

    Ergonomically designed handle with cmfortable rubber grip allows the optimized safety aswell as comfortable，three position operational handle lever for lifting，transportion and lowering purposes
    Lower Position--to lower load，pull up on the finger tip control
    Neutral Position--to place finger tip control in this position during pulling the truck or load
    Lift Position--to raise load，push down on finger tip control，pump handle to raise the load

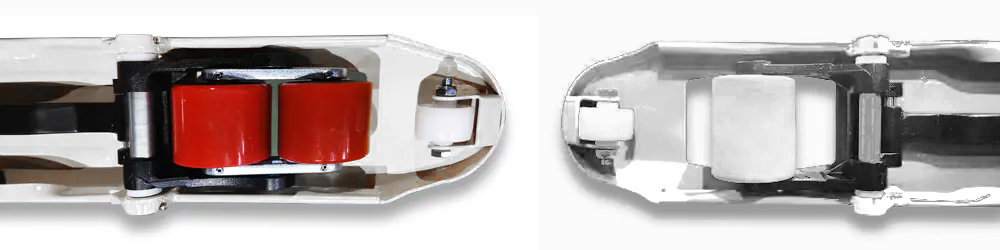

    Single and Tandem load roller for Option
    Additional entry and exit fork rollers guarantees for maximum stability and safety for transporting goods on slopes

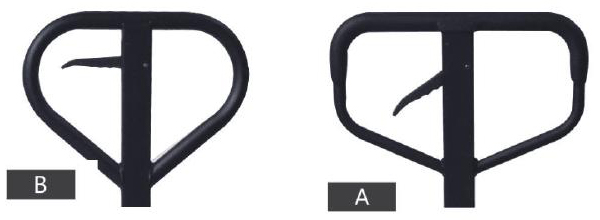

    Handle Option

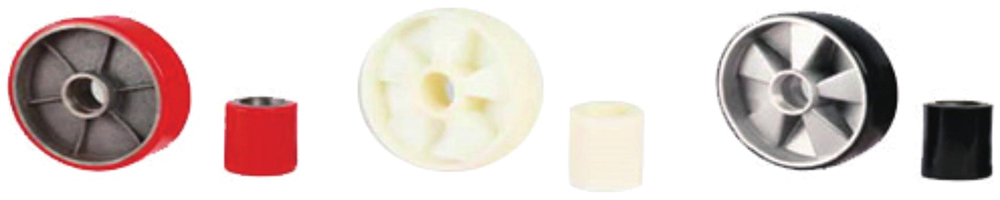

    Wheel Option

    Option of different coating material for both steering wheel and fork rollers Polyurethane Ideal for delicate floors with hard wearing and non-making property,quiet and durable

    Nylon

    Low drag efforts,high resistance to chemicals,non-making,preferred in food,fishing and chemical industries with smooth level floors

    Rubber

    Best Choice for quiet and durable demands,ideal for smooth and rough floors


    Hand pallet truck 1kg=2.2lb 1inch=25.4mm

    Type/ITEM   QD20 QF25 QF30
    Pump   DB BF BF
    Capacity  kg 2000 2500 3000
    Height of  fork  mm 75-190 85-200 85-200
    Width of the fork  mm 550/685 550/685 550/685
    Length of the fork  mm 1000/1150/1220 1000/1150/1220 1000/1150/1220
    Size of Steer wheel  mm 160 180 180
    Size of load roller  mm Φ70X60 Φ80x70 Φ80x70
    Material of the wheel    Nylon / PU Nylon / PU Nylon / PU
    Pump time to the top  times ≤13 ≤13 ≤13
    N.W. kg 53-57 61-69 65-70
    Packing pcs/pallet 6 6 6
    Packing size mm 570X760X2300
    700X760X2300    		 570X760X2300
    700X760X2300    		 570X760X2300
    700X760X2300
PREV：Classic Hand Pallet TruckNEXT：No previous article

Related Products

Changxing Qiangsheng Machinery Co., Ltd. has grown into a professional machinery and equipment manufacturing enterprise integrating production, sales, and service.

As China Custom Standard Hand Pallet Truck Suppliers and Standard Hand Pallet Truck Factory. Since the establishment of the company, the factory has determined the pre-development policy of "seeking momentum first, profit later; based on quality and creating market". And put forward "scientific management, careful processing, providing better products" as the work policy. From the chairman, and general manager to each employee, we have established a sense of responsibility for quality priority and hard work, which is the spiritual pillar of career development and is brought into practical work.

CERTIFICATION

What are some key considerations when choosing a standard hand pallet truck for a specific application or environment?
When choosing a standard hand pallet truck for a specific application or environment, several key considerations should be taken into account to ensure that the equipment meets your needs and operates safely. Here are some important factors to consider:
Weight Capacity:
Determine the maximum weight of the loads you'll be handling. Choose a hand pallet truck with a weight capacity that comfortably exceeds your heaviest load to ensure safety and avoid overloading.
Fork Length and Width:
The dimensions of the forks should match the size of the pallets or loads you'll be handling. Ensure that the forks are wide and long enough to accommodate your typical loads.
Load Height:
Consider the maximum and minimum lift heights you'll require to ensure that the hand pallet truck can lift and lower loads at the desired levels.
Wheel Type:
Choose the appropriate wheel type for your working environment. Common options include nylon, polyurethane, and rubber wheels. Nylon and polyurethane are suitable for smooth surfaces, while rubber wheels are more forgiving on rough terrain.
Handle Design:
Look for a handle design that provides ergonomic comfort and ease of use. Some handles have three-position control (lift, lower, and neutral) for better control.
Pumping Mechanism:
Consider the ease of pumping the handle to raise and lower loads. A hand pallet truck with minimal effort required for lifting can reduce operator fatigue.
Maintenance Requirements:
Evaluate the maintenance needs of the pallet truck. Some models require regular lubrication, while others are maintenance-free.
Durability:
Depending on your application, choose a hand pallet truck that is built to withstand the environmental conditions and demands of your workplace. Heavy-duty options are available for more rugged environments.
Safety Features:
Check for safety features such as a neutral position on the handle, which prevents unintentional lowering of the load, and reliable braking mechanisms.
Environment and Flooring:
Consider the type of surface you'll be operating the hand pallet truck on. Smooth warehouse floors may require different wheels than rough outdoor surfaces.
Space Constraints:
Ensure that the hand pallet truck can fit within the space where it will be used, especially in narrow aisles or confined areas.
