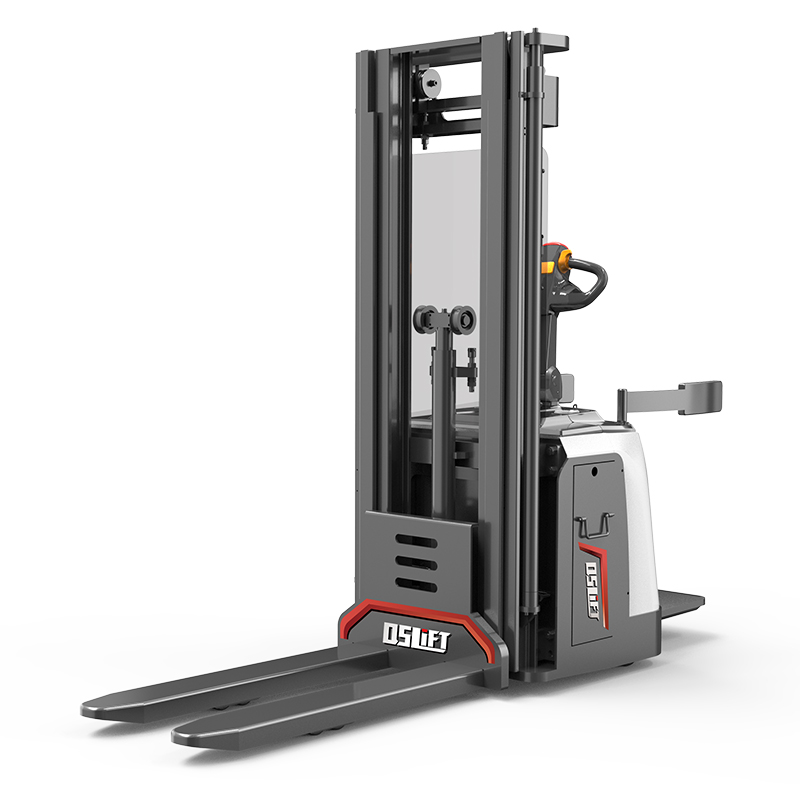

The stacker designed to be used with high efficienty even during their multi-shift operation. The configuration of the stacker allows you to get more powerful and productive unts thanks to Its increased speed and different options of batteries, including lithium solutions.
●High capacity 1500kg &2000kg with AC drive system

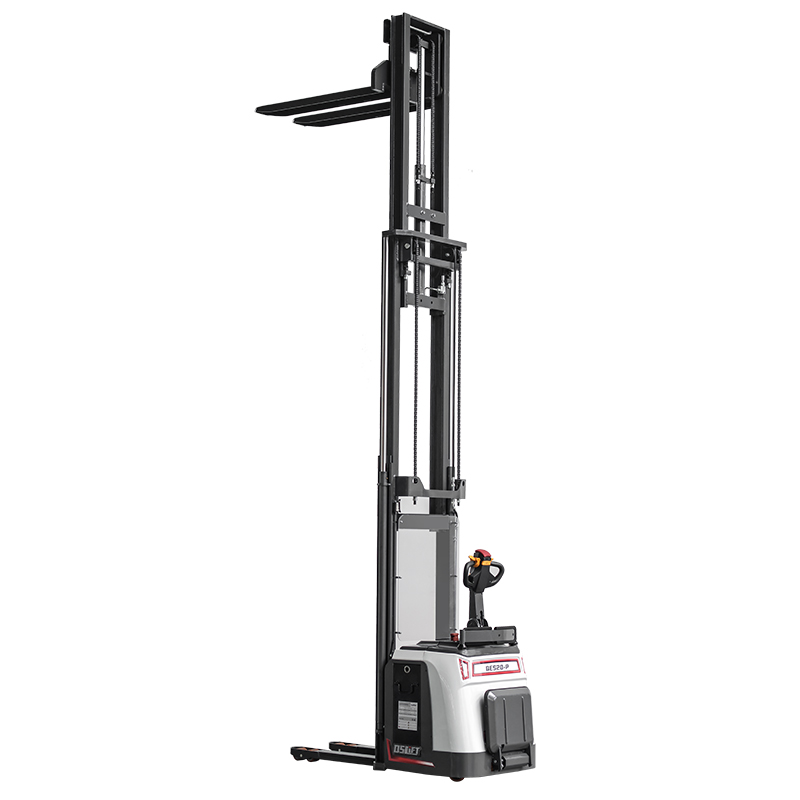

●Robust 2 and 3 stage masts for Lfting Heights up to 6000mm lift height

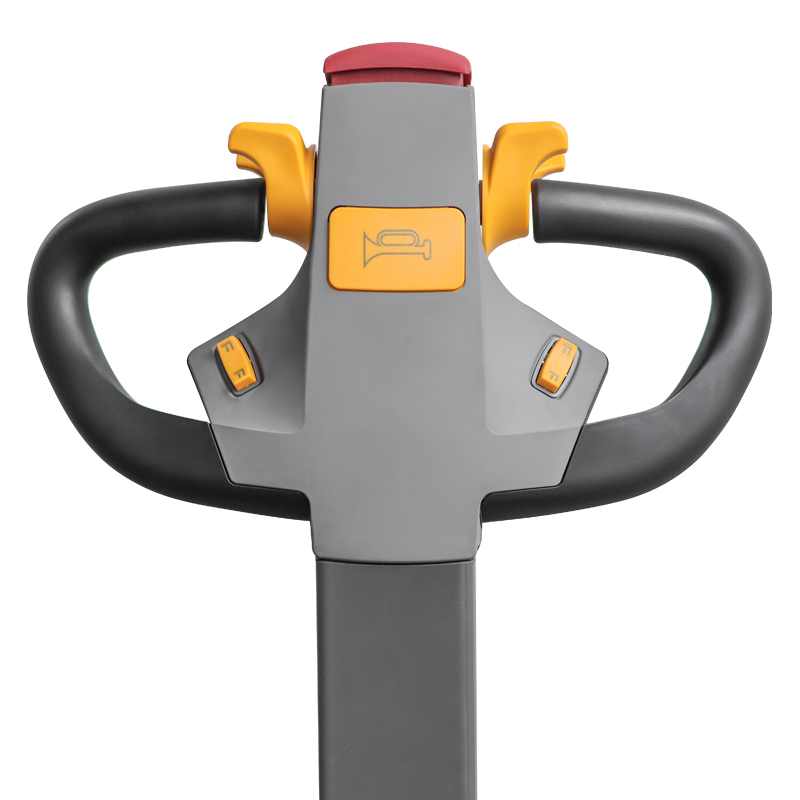

●Electric power steering (EPS) as option

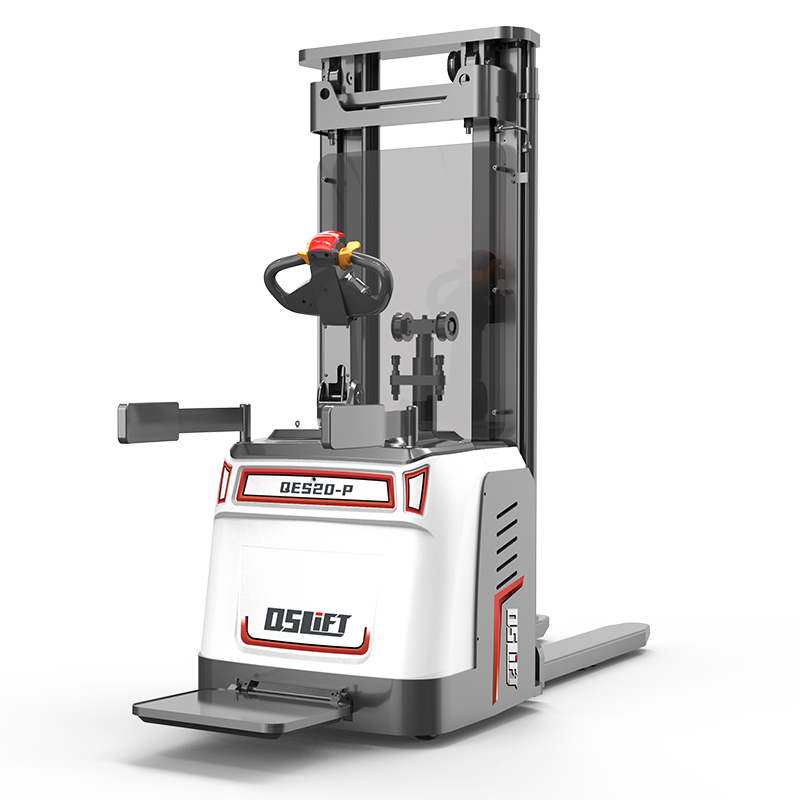

●Foldable platform and protective arms as option

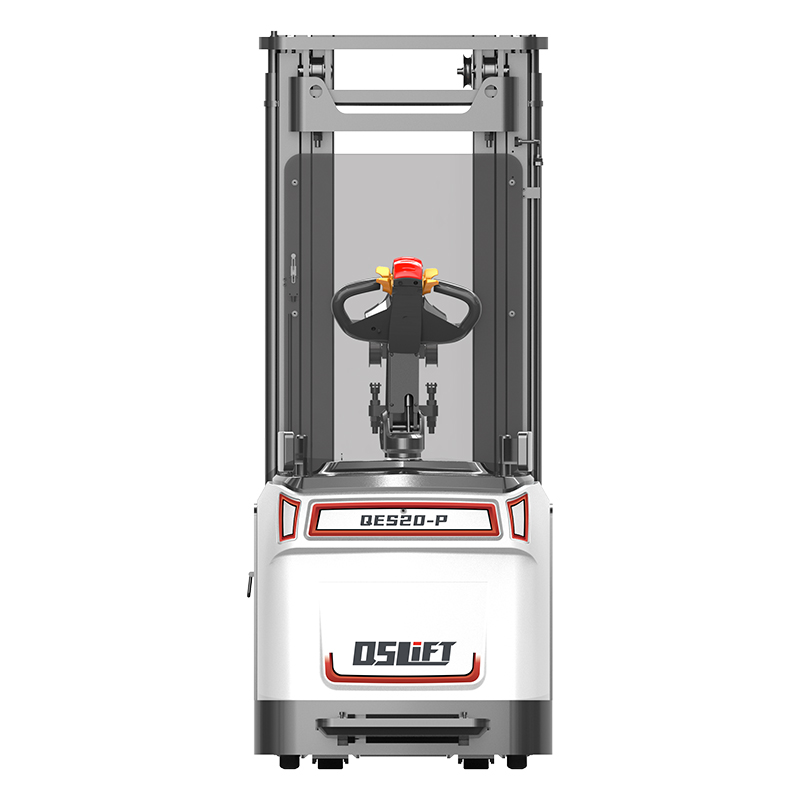

●Standard side way battery replacement allows customers to use the truck wlth multl-shlft operatlon and replace the batteryles fast and effortlessly

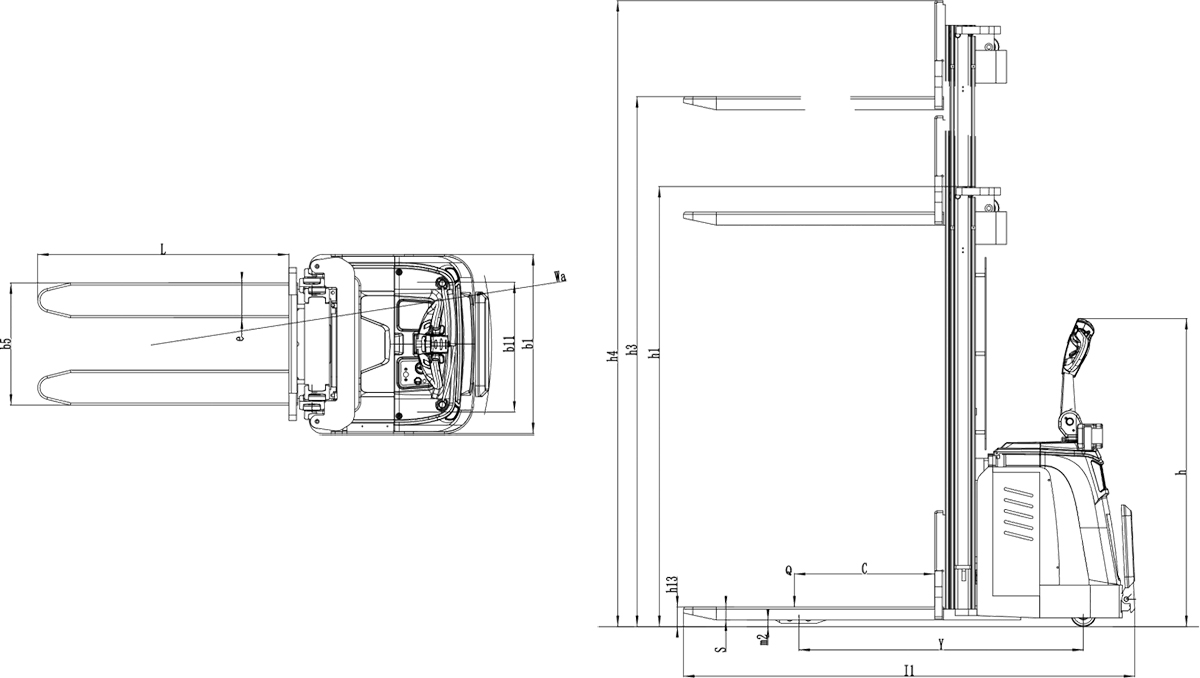

| Characteristics | 1.1 | Model | QES16P(3M) | QES20P(4.5M) | |
| 1.2 | Drive type | Battery | |||
| 1.3 | Operator type | Pedestrian/Stand | |||
| 1.4 | Capacity | Q(kg) | 1600 | 2000 | |
| 1.5 | Load centre distance | c(mm) | 600 | ||
| Weight | 2.1 | Service Weight / Exl. battery | kg | 1250 | |
| Wheel | 3.1 | Tires | Polyurethane ( PU ) | ||
| 3.2 | Size of load roller，Number | Φ80×70, 4 | |||
| 3.3 | Size of Balance roller, Number | Φ115×55, 2 | |||
| 3.4 | Size of Steering wheel | Φ250x80 | |||
| 3.5 | Tread, Rear | b11(mm) | 625 | ||
| 3.6 | Tread, Front | Y(mm) | 1350 | ||
| Size | 4.1 | Lifting Height | h3(mm) | 3000 | 4500 |
| 4.2 | Lowred mast height | h1(mm) | 2010 | 2010 | |
| 4.3 | Height of tiller in Drive position/Max. | h(mm) | 1450 | 1450 | |
| 4.4 | Free Lifting Height | H2(mm) | 1500 | 1500 | |
| 4.5 | Extened mast height | h4(mm) | 3480 | 4980 | |
| 4.6 | Lowered fork height | h13(mm) | 90 | ||
| 4.7 | Overall Length | l1(mm) | 2080 | ||
| 4.8 | Overall Width | b1(mm) | 820 | ||
| 4.9 | Fork dimensions | S/e/l(mm) | 60/160/1150 | ||
| 4.1 | Width across forks | b5(mm) | 570/685 | ||
| 4.11 | Ground clearance, centre of wheel base | m2(mm) | 30 | ||
| 4.12 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2280 | ||
| 4.13 | Aisle width for pallets 800x1200 crossways | Ast(mm) | 2330 | ||
| 4.14 | Turning radius | Wa(mm) | 1560 | ||
| Performance | 5.1 | Travel Speed，Laden/unladen | Km/h | 5.5/5.8 | |
| 5.2 | Lift Speed，Laden/unladen | mm/s | 100/120 | ||
| 5.3 | lowering Speed，Laden/unladen | mm/s | 120/100 | ||
| 5.4 | Gradeability，Laden/unladen | % | 5/8 | ||
| 5.5 | Service Brake | Electromagnetic | |||
| Electric engine | 6.1 | Drive motor rating | kW | 1.5/2(AC) | |
| 6.2 | Lifting motor rating | kW | 2.2/3 | ||
| 6.3 | Battery capacity | V/Ah | 24/210 | 24/270 | |
| Lithium 24/160 | Lithium 24/200 | ||||
| 6.4 | Battery weight | Kg | Lead acid 200/260 | ||
| Lithium 82/85 | |||||
| 6.5 | Type of Steering | Mechanical steering/ EPS | |||
| Others | 7.1 | Type of drive control | AC speed control | ||
| 7.2 | Sound level at driver's ear acc. to DIN12053 | dB(A) | <70 | ||
| Lowered mast height h1/mm | Free lifting height h2/mm | Lifting height h3/mm | Extened mast height h4/mm | ||
| 2-stage mast | 2.5M | 1760 | 1250 | 2500 | 2980 |
| 3M | 2010 | 1500 | 3000 | 3480 | |
| 3.5M | 2260 | 1750 | 3500 | 3980 | |
| 4M | 2510 | 2000 | 4000 | 4480 | |
| 3 stage mast | 4M | 1840 | 1330 | 4000 | 4480 |
| 4.5M | 2010 | 1500 | 4500 | 4980 | |
| 5M | 2180 | 1670 | 5000 | 5480 | |
| 5.5M | 2350 | 1840 | 5500 | 5980 | |
| 6M | 2520 | 2010 | 6000 | 6480 |
