Economic Electric Pallet Truck

Economic Electric Pallet Truck

EPT15E / EPT20E
Get a Quote
dm6a9654
dm6a9653
dm6a9647
dm6a9649
dm6a9650
dm6a9652
  • Description

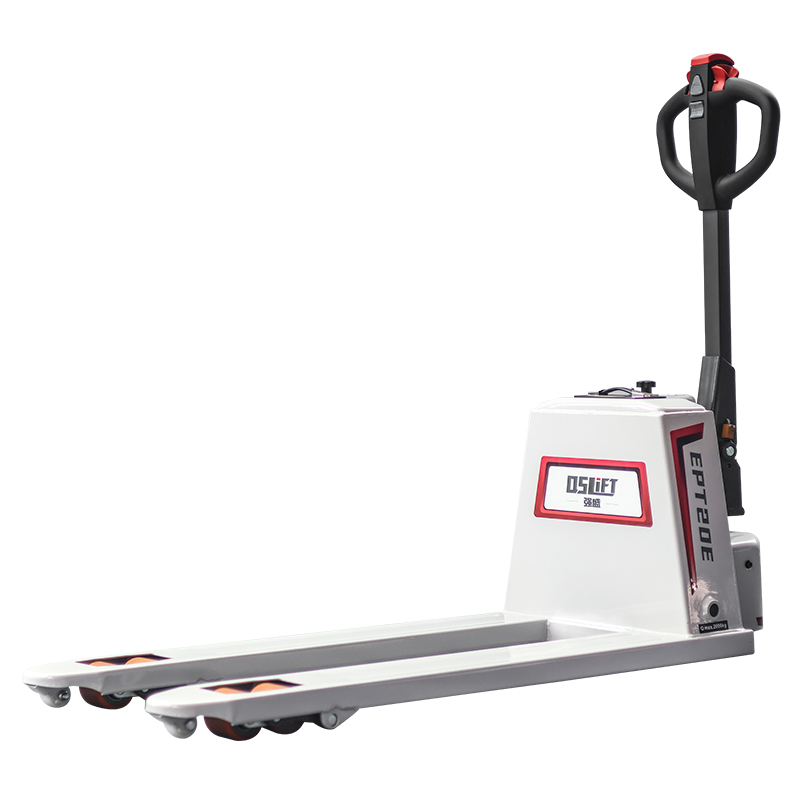

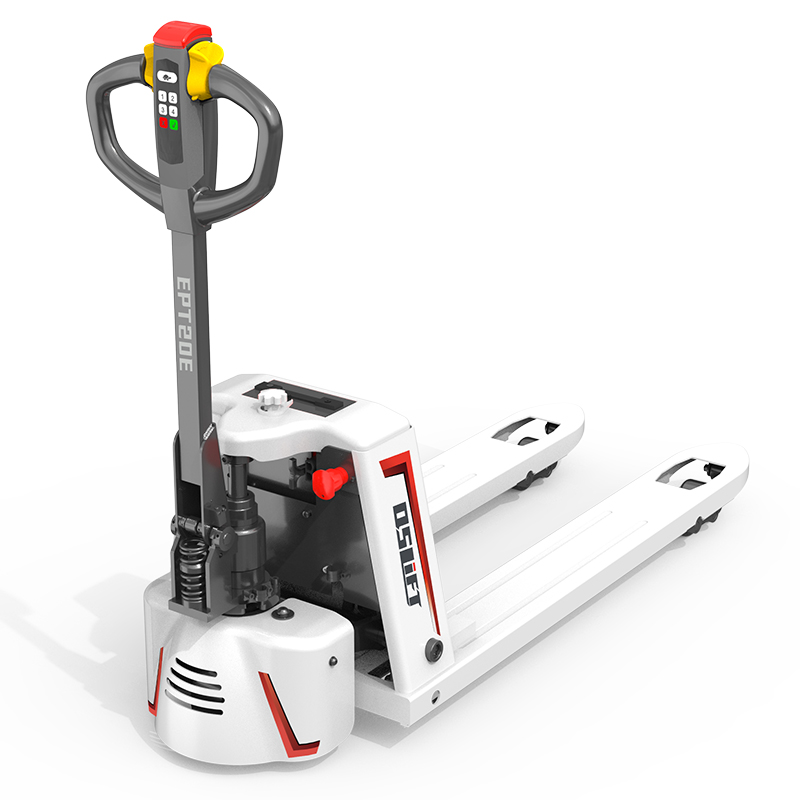

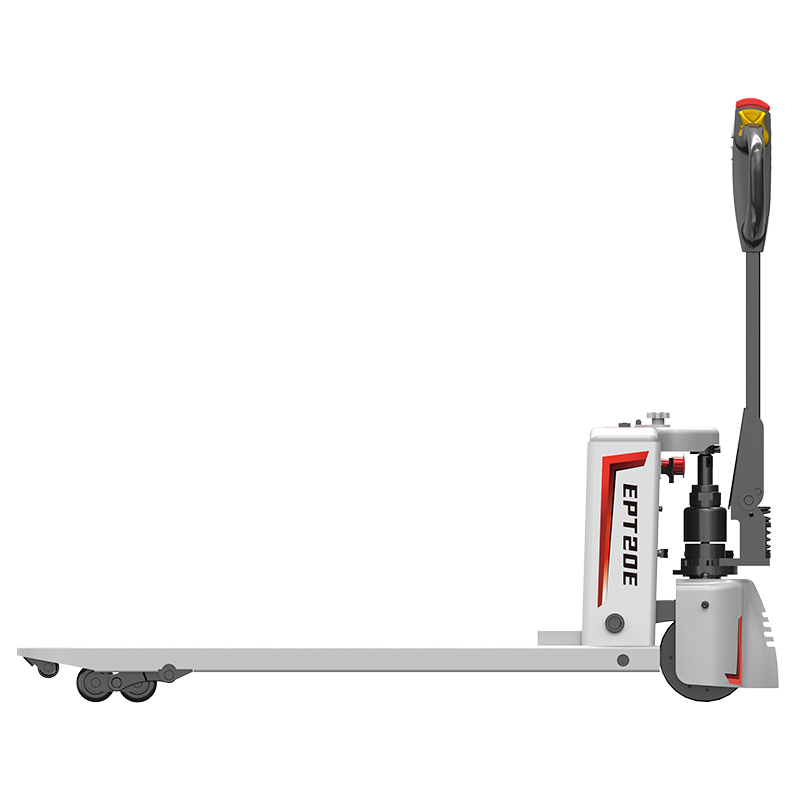

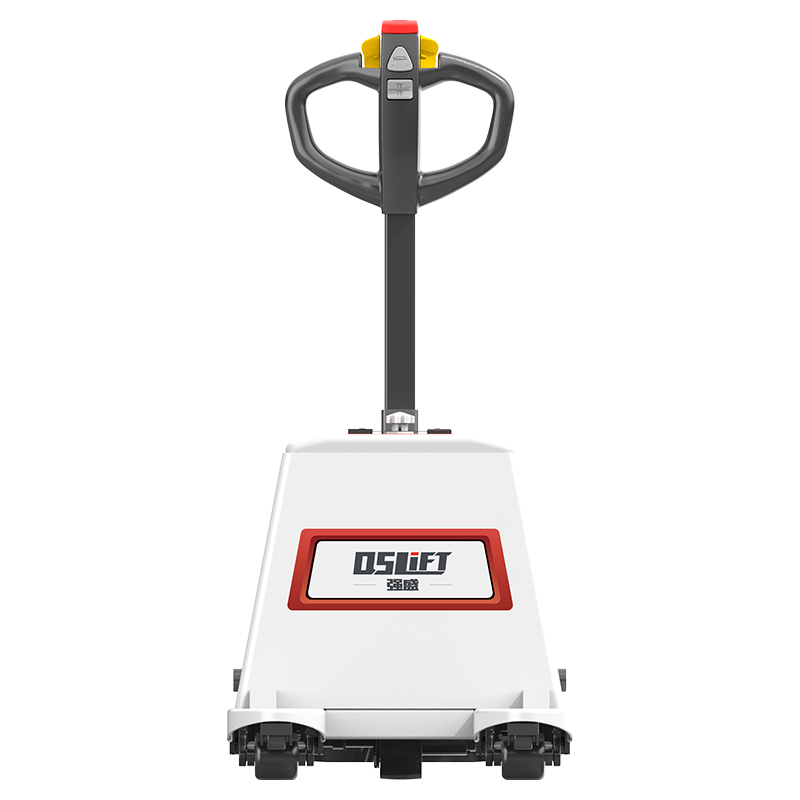

  • EPT15/E & EPT20/E series pallet trucks  are the smart design best value electric pallet trucks with capacity 1500kg and 2000kg,  which is perfect alternative to hand pallet trucks, it will increase the material handling efficiency and bring down the total cost esp. the labor involved.


    *Capacity:1500kg &2000kg

    *Compact & Robust chassis

    *Low self-weight:128kg

    *Smart design

    *Fast chargeing and Easy replacment Lithium battery

    *Great grade-ability performance

    *Powerful drive & pump system

    *Best cost performance





    Drive system

    190mm drive wheel make the truck more stable when moving,48vDC Brushless motor,maintenance free，big transmission ratio gearbox,high gradebility,low energy consumption

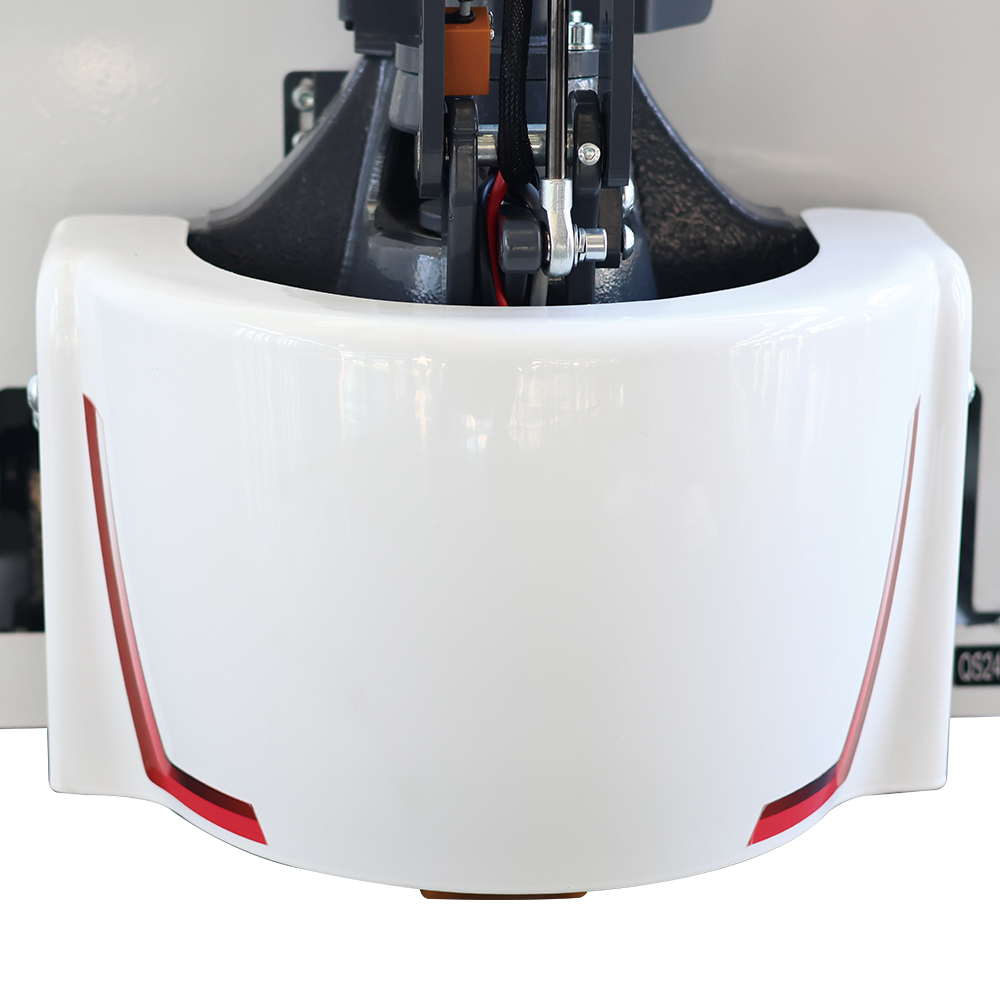

    Full enclosed drive wheel cover

    Rigid and robust fully enclosed drive wheel cover gives all-round foot protection for operator

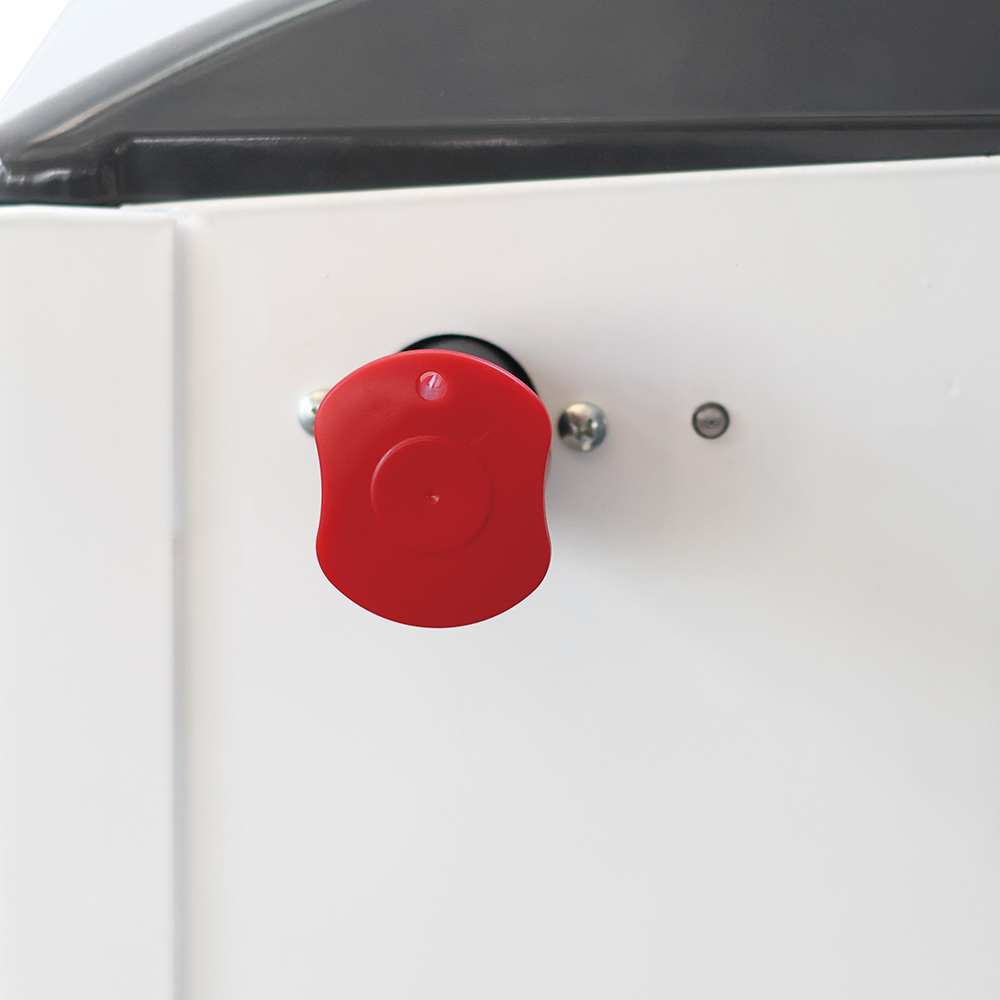

    Emergency switch

    Emergency switcch located where you can easily reach and control，assuring safety for people and truck

    Lithium iron phosphate battery

    48v LFP battery，easy replacement，low energy comsumption，long working time，safer and stable cell with long service life Easy installation，maintenance and replacement






    Model

    		 EPT15/E

    EPT20/E

    Drive

    battery

    Operator Type



    Pedestrian

    Capacity

    kg

    1500

    2000

    Load centre

    mm

    600

    Wheelbase

    mm

    1220

    Net Weight

    kg

    128

    138

    Wheel material



    Pu/steel core

    Drive wheel size, number

    mm

    Φ190*70/1

    Load roller size, number

    mm

    Φ80*70/4

    Lifting height

    mm

    75-190/85-190

    Height of tiller in drive position Min/Max

    mm

    1200

    Min fork height

    mm

    85

    Totally length

    mm

    1540

    Totally Width

    mm

    560/680

    single fork dimensions

    mm

    160*1150/160*1220

    Ground clearance

    mm

    30

    Min. Right-angle stack channel width, (pallet size 1000X1200,1200 placed along cargo fork)

    mm

    1500

    Turning Radius

    mm

    1350

    Drive Speed with/ without loading

    km/h

    4.5

    Lifting speed with/without loading

    mm/s

    22/17

    Lowering speed with/without loading

    mm/s

    26/30

    Gradient

    %

    10/6

    Brake



    Electromagnetic brake

    Power of Drive motor

    w

    750W

    850W

    Power of lifting motor

    w

    500W

    600W

    Battery capacity

    V/AH

    48v12ah

    48v15ah

    Battery weight

    kg

    4.5kg

    Charging time

    H

    2h

    2.5h

    Working time after full charge

    H

    >2h

    >2h
PREV：Standard Electric Pallet TruckNEXT：2000kg 2500kg 3000kg Full Electric Powered Pallet Truck

Related Products

Changxing Qiangsheng Machinery Co., Ltd. has grown into a professional machinery and equipment manufacturing enterprise integrating production, sales, and service.

As China Custom Economic Electric Pallet Truck Suppliers and Economic Electric Pallet Truck Factory. Since the establishment of the company, the factory has determined the pre-development policy of "seeking momentum first, profit later; based on quality and creating market". And put forward "scientific management, careful processing, providing better products" as the work policy. From the chairman, and general manager to each employee, we have established a sense of responsibility for quality priority and hard work, which is the spiritual pillar of career development and is brought into practical work.

CERTIFICATION

How to improve the durability of economic electric pallet truck?
Improving the durability of an economic electric pallet truck is essential to extend its lifespan and minimize maintenance and replacement costs. Here are some strategies to enhance the durability of these machines:
Proper Maintenance: Regular and thorough maintenance is crucial. Follow the manufacturer's maintenance schedule for tasks like battery maintenance, lubrication, and component inspections. Replace worn or damaged parts promptly.
Operator Training: Train your pallet truck operators to use the equipment correctly and safely. Avoid overloading the machine, abrupt stops, and harsh maneuvers. Proper usage can significantly extend the truck's lifespan.
Battery Care: Electric pallet trucks rely on batteries. Ensure proper battery care, including regular charging, avoiding deep discharges, and cleaning battery terminals. Well-maintained batteries last longer and perform better.
Check Fluid Levels: For electric pallet trucks that use hydraulic systems, regularly check and maintain hydraulic fluid levels. Proper fluid levels and quality are essential for the longevity of hydraulic components.
Tire Maintenance: Inspect and maintain the tires. Proper tire pressure and regular inspections can prevent premature wear and damage to the wheels and tires.
Replace Worn Components: Regularly inspect and replace worn or damaged components such as load wheels, drive wheels, and forks. Worn components can affect the performance and safety of the machine.
Clean and Protect: Keep the pallet truck clean from debris, dust, and moisture. Corrosion and contaminants can reduce the lifespan of various components.
Storage: When not in use, store the electric pallet truck in a dry, clean environment. Protect it from extreme temperatures and humidity, as these can affect the electrical components and battery.
Use High-Quality Parts: When replacing components or performing maintenance, use high-quality, OEM (original equipment manufacturer) parts. Cheaper alternatives may not have the same durability.
Load Capacity: Avoid overloading the pallet truck. Each model has a specified load capacity, and exceeding it can lead to premature wear and potential damage to the truck's components.
Regular Inspections: Conduct regular inspections to identify potential issues early. This allows you to address problems before they become major and costly repairs.
Software Updates: If your electric pallet truck is equipped with control software, ensure that it's up to date. Software updates may include performance improvements and bug fixes.
Proper Storage: During periods of extended non-use, take appropriate measures to store the pallet truck, such as removing the battery or following the manufacturer's guidelines.
Dust and Debris Control: Keep the workspace clean to minimize the ingress of dust and debris into the truck's components.
Maintain Operator Awareness: Ensure that operators are aware of potential hazards and challenges in the workspace, allowing them to avoid sudden stops, sharp turns, or collisions.
By following these maintenance and care strategies, you can significantly improve the durability and longevity of your economic electric pallet truck, reducing downtime and overall operating costs.
