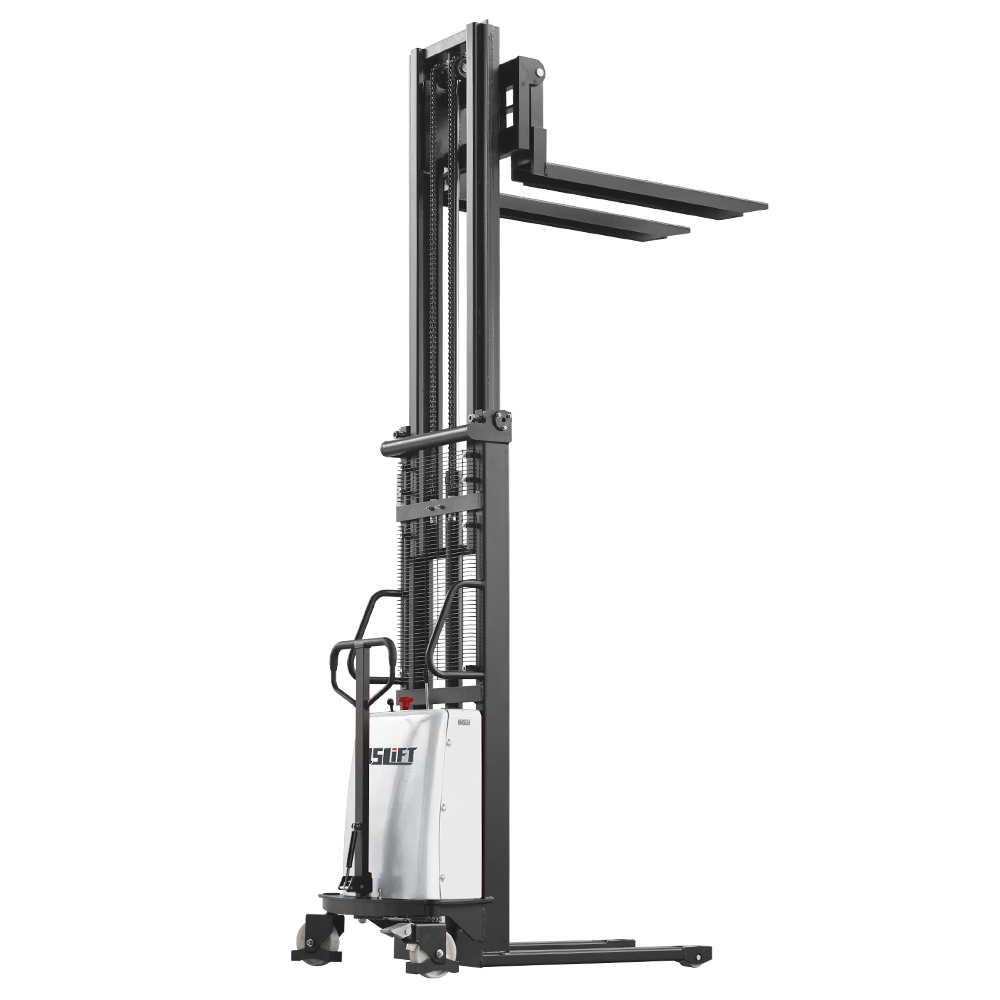

Semi Elecric Hydraulic Hand Stacker

QSS1016 / QSS1516 / QSS2016 / QSS1020 / QSS1520 / QSS1025 / QSS1525 / QSS1030 / QSS1530 / QSS1035 / QSS1535 / QSS2020

Get a Quote

Description

The QSS Series semi-electric stacker is the cost-effective choice for short -distance transportation and stacking applications, with 1000KG, 1500kg and 2000kg capacity, lifting height from 1600mm to 3500mm. With its compact and smart design, it's easy to maneuver and ideal to be used in confined spaces esp, narrow aisles

Sturdy and reliale high quality channel-steel mast and solid base, with integrated steel electric box cover, makes the stacker the most robust to avoid any damaages to increase the service lift. Easy approach to all internal parts by unscrewing 4 screws at the cover for easy maintenance

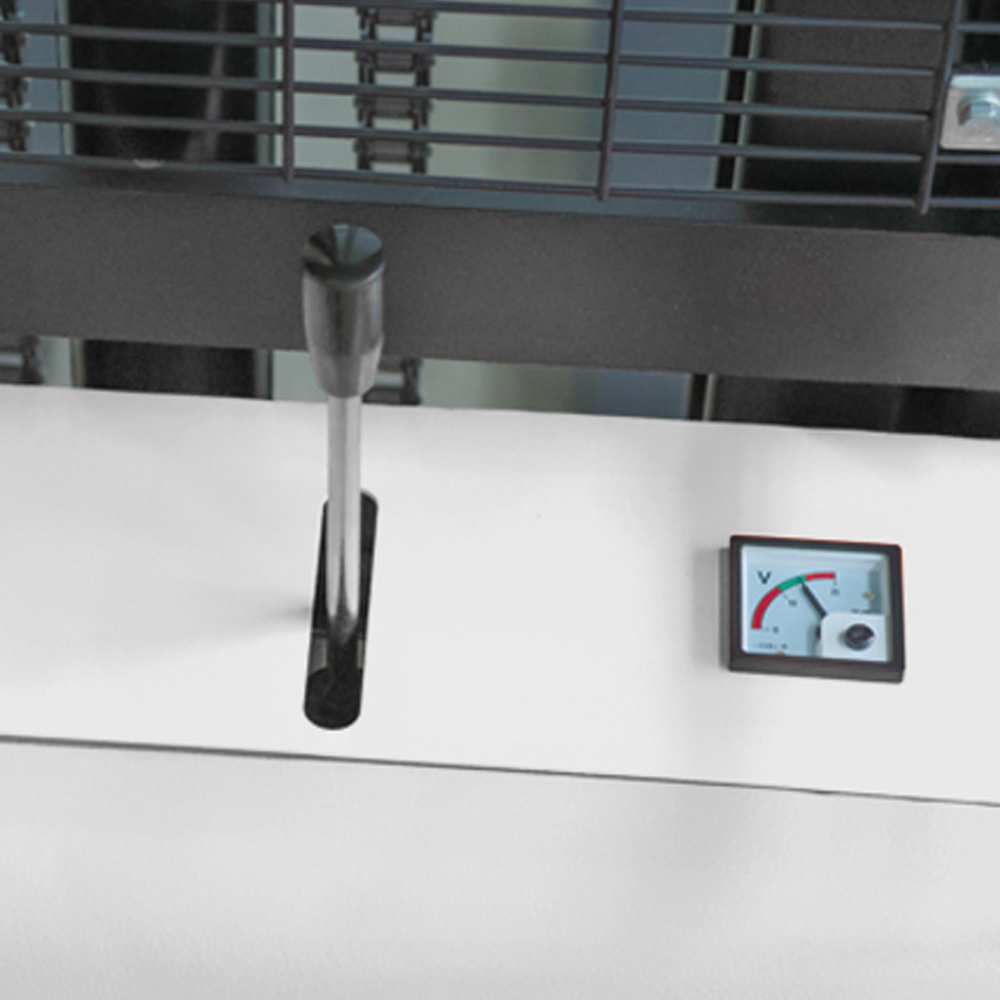

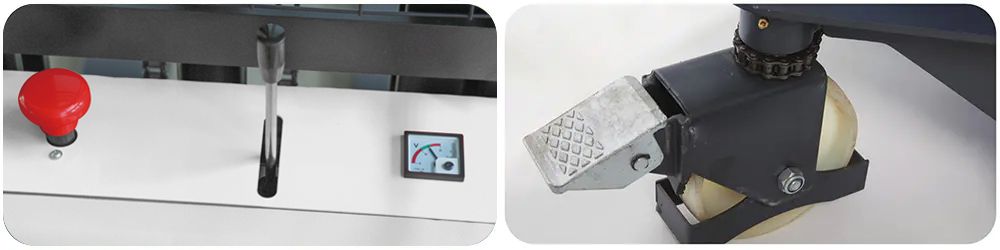

Precise lifting and lowering via hand lever. Battery cuy-offf switch prevents unauthorized use

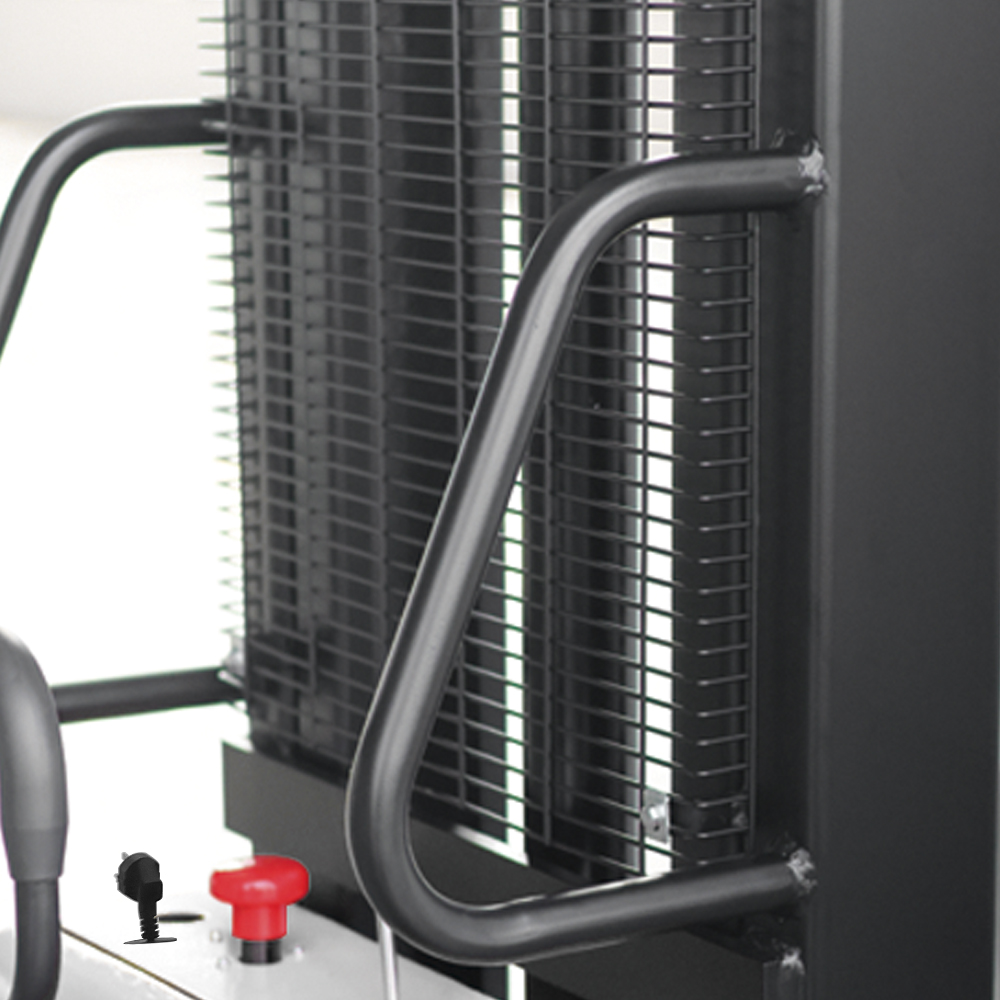

Additional protection for the operator through foot protection on the steering rollers

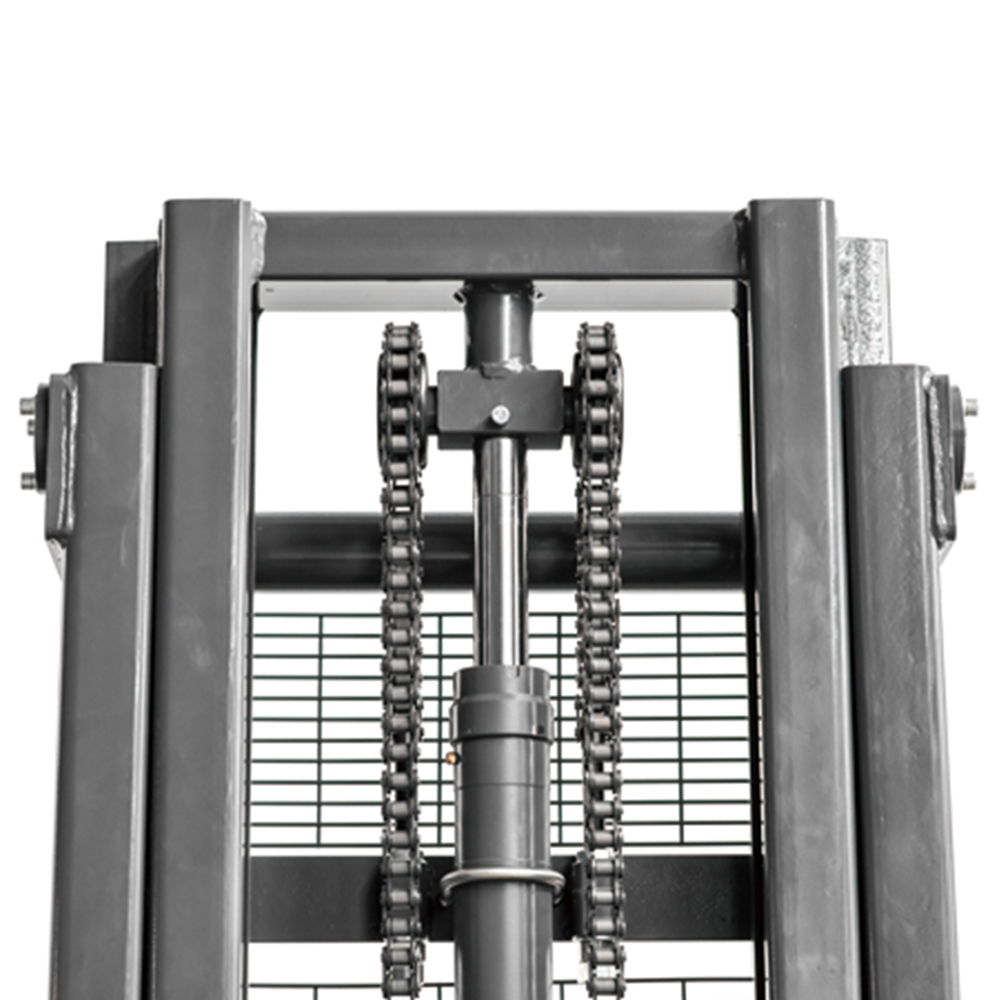

Chain systen is easy for steering

Safe partking in any situation with mechanical parking brake

Single-stage Mast Series

		Model
Item	Unit	QSS1016	QSS1516	QSS2016
Capacity	kg	1000	1500	2000
Net Weight	kg	370	385	410
Load Centre	mm	600
Max.Mast Height	mm	2030
Lifting Height	mm	1600
Min Height of fork	mm	85

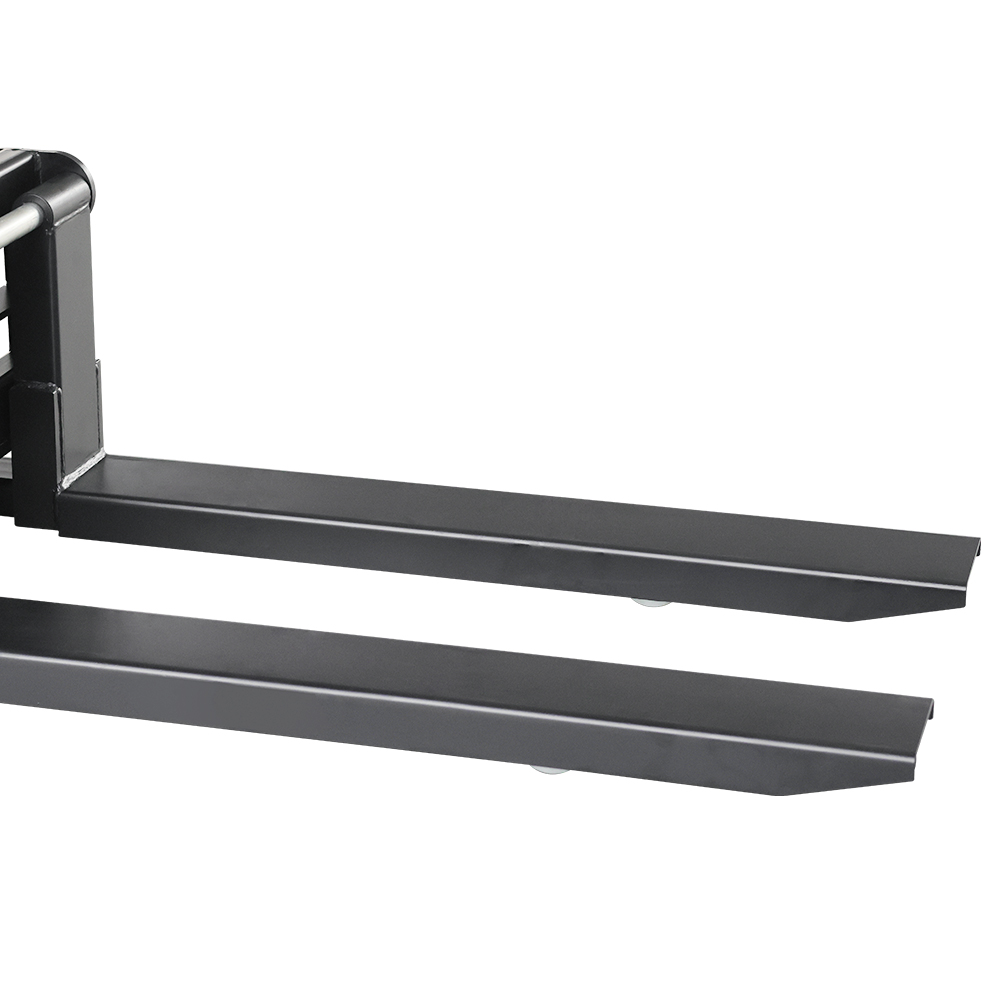

Fork Size	mm	160×1150
Width of fork	mm	365-670/550
Width of Leg	mm	620-490
Lifting Motor	V/KW	12V/1.5-1.6
Battery	v/ah	12v/120AH
Charger	V/A	12V/15A
Length of stacker	mm	1875
Width of Stacker	mm	810

Double-stage Mast Series

		Mode
Item	Unit	QSS1020	QSS1520	QSS1025	QSS1525	QSS1030	QSS1530	QSS1035	QSS1535	SPN2020
Capacity	kg	1000	1500	1000	1500	1000	1500	1000	1500	2000
Max.Mast Height	mm	2560		3060		3560		4060		2560
Lifting Height	mm	2000		2500		3000		3500		2000
Net Weight	kg	445		470		490		520		490
Load Centre	mm	600
Min Height of fork	mm	85
Fork Size	mm	160×1150
Width of fork	mm	365-670/550
Width of Leg	mm	620-490
Lifting Motor	V/KW	12V/1.5-1.6
Battery	v/ah	12v/120AH
Charger	V/A	12V/15A
Length of stacker	mm	1875
Width of Stacker	mm	810
